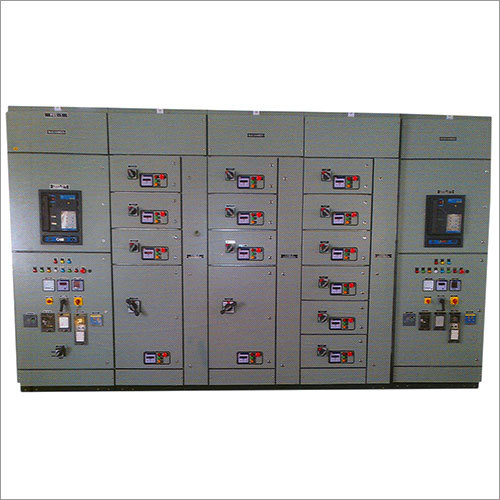

Busbar Compartment
Product Details:
X
Product Description
With our rich industry experience, we are engaged in manufacturing and supplying a supreme quality Busbar Compartment. This is manufactured from premium quality components, sourced from the authentic vendors of the market. In order to ensure quality, our product is stringently tested on various predefined parameters. Busbar Compartment finds its usage in power, electrical and electronic industry.
Features:
-
Maintenance free
-
Easy to handle
-
Rugged construction
TECHNICAL SPECIFICATIONS:
| DESCRIPTION | UNIT | RATING | RATING |
| Voltage | KV | 12 | 24/36 |
| Frequency | HZ | 50 | 50 |
| Current | A | 630-3150 | 1250/1600 |
| Short time with stand. Current for 3 sec. | KA | 20KA /25 KA / 40 KA / 44KA | 25KA/31.75 |
| Peak with standard current | KAP | 66/100 KA | 66/78.75 |
| Insulation Level | Kvrms/KVP | 28/75 | 75/175 |
| Width x Depth x Height | mm | 600x1500x2300-26.3 KA 800x1500x2300-40KA | 1000x2150x2500 |
| Weight with breaker (Approx) | kg | 750 (26.3 KA) 1000 (40KA) | 1500 |
| Enclosure degree of protection (within the Switchgear ) | IP 4X | IP 4X | |
| IP 2X | IP 2X |
TECHNICAL SPECIFICATIONS:
| DESCRIPTION | UNIT | Breaker Type | |||
| SF6 | VD4 | V max | VD4 | ||
| Voltage | KV | 12 | 12 | 12 | 36 |
| Frequency | HZ | 50 | 50 | 50 | 50 |
| Current | A | 1250-3150A | 680-4000 | 630-1250 | 1250-1600 |
| Breaking Capacity | KA | 40 | 26.3-40/44 | 16-20-25 | 25/31.5 |
| Short time with standard current (for 3 sec) | KA | 40 | 26.3-40/44 | 16-20-25 | 25/31.5 |
| Peak with standard current | KAP | 100 | 100/110 | 40-50-63 | 66/78.75 |
| Insulation Level | Kvrms/KVP | 28/75* | 28/75* | 28/75* | 75/175* |
| Operating Sequence | 0-30min CO-3 min-CO / 0-0.3 sec-CO- 3 min- co | ||||
| Opening Time | ms | 40-60 | 40-60 | 35-60 | |
| Arc Time | ms | 10-15 | 10-15 | 10-15 | |
| Total Interruption Time | ms | 50-75 | 50-75 | 50-75 | |
| Closing Time | ms | 60-80 | 60-80 | 60-80 | |
| Operating Temperature | ºC | -5+40 | -5-50 | -5+40 | |
| Weight | Kg | 190-225 | 150-170 | ||
